FMC-1000S-PH Gigabit Ethernet Media Converter | 10/100/1000BaseTx to SFP Fiber Converter with 30W PoE+ Injector | Ideal for Network Upgrades, Data Centers & Office Connectivity

Product Description

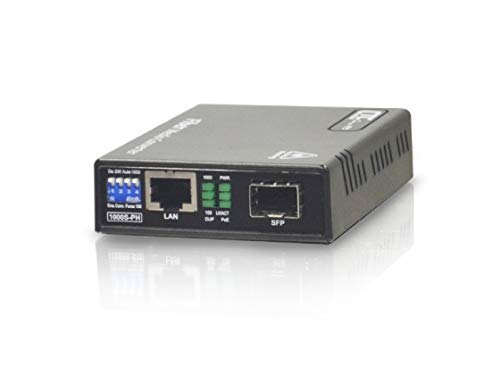

Note: This Gigabit media converter does NOT include the SFP transceiver module. Product description This Gigabit converter is a PoE PSE injector equipment. It provides power over the Ethernet copper UTP cable to power up end devices like VoIP phones, WiFi APs or IP Surveillance cameras. It is compatible with the PoE 802.3af and 802.3at standards and delivers maximum power of 30W over the UTP RJ45 port, suitable even for the most power consuming wireless equipment. The FMC-1000S-PH Gigabit Ethernet is an extremely versatile optical fiber media converter for 10/100/1000Base-T copper to Gigabit SFP slot. Any 1000Base-SX/LX/LHX/ZX or WDM/CWDM SFP transceiver can be installed in the media converter. Unit has a separate AC power supply. The FMC-1000S-PH Gigabit fiber media converter is equipped with a PoE+ injector compatible with 802.3af/at Power over Ethernet standards that allows connection of any PoE device such as IP phones or IP surveillance cameras, eliminating the need of remote powering or additional cabling. Technical specifications Interfaces: RJ45 copper IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T and SFP slot for 802.3z 1000Base- SX/LX/ZX standards Connectors: RJ-45 copper 10/100/1000 Mbps and SFP slot 1000Mbps UTP port: MDI/MDI-X, auto-negotiation, Full/Half Duplex, max. packet 1632 bytes, provides PoE 802.3af/802.3at standards with 30W max power budget for externally powered PoE devices Optical slot: Small Form Pluggable - supports Auto and Forced mode operation Front LEDs: PWR, Fiber duplex, Fiber Link, TP Link, TP Duplex, TP Speed Power: Embedded 90-260V AC power, 3 pin cord, US type main plug Temperature: 0 50°C (Operating); -10 70°C (Storage) Humidity: 20 80% non condensing (Operating); 0 90% (Storage) Consumption: less than 35W (at full PoE+ consumption) Dimensions(WxDxH): 108mm x 74mm x 23mm with separate AC adapter Weight: 480g (80g for converter only) Compliance: CE, FCC Class A MTBF: 75,000 hours
