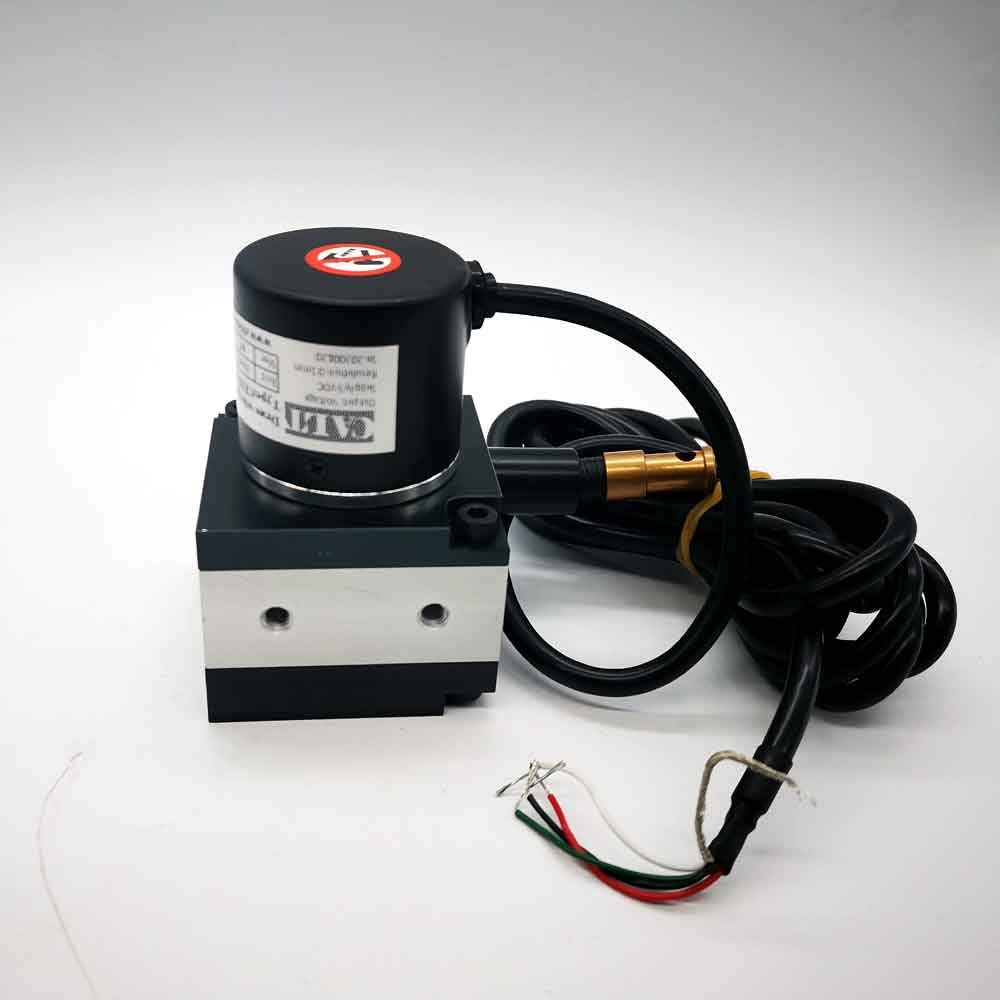

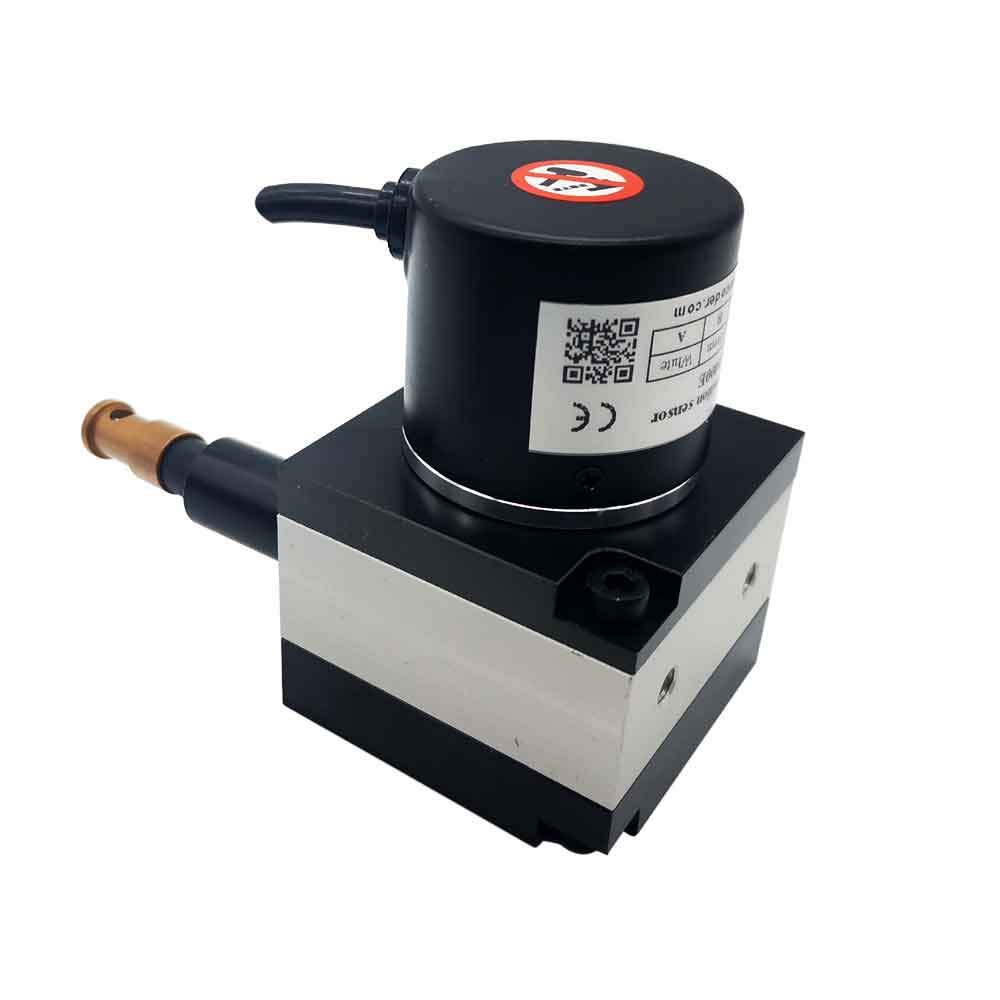

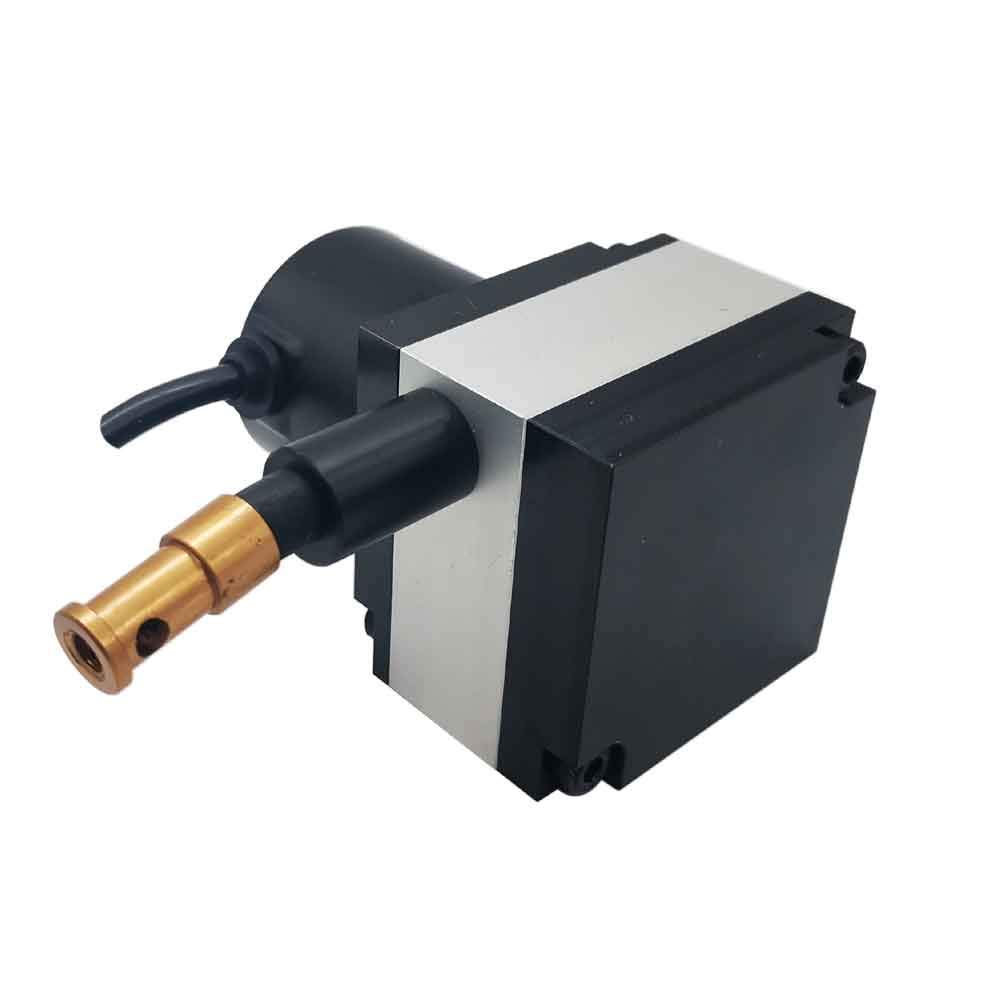

Economical 1000mm Draw Wire Displacement Linear Encoder Sensor AB Phase CESI-S1000E (0-1000mm Measuring Range, PNP Output) - Perfect for Industrial Automation, CNC Machines, and Robotics Applications

Product Description

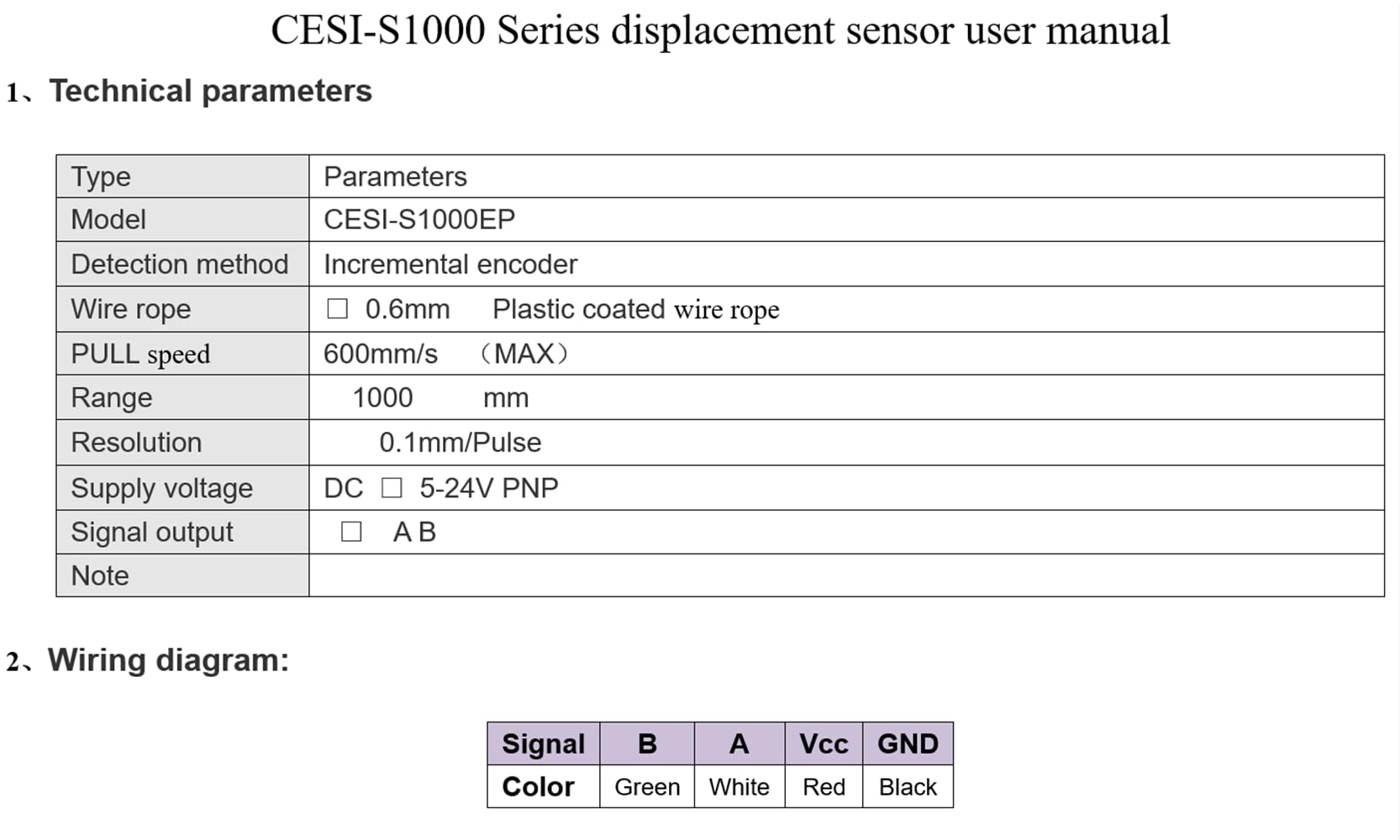

Specifications: compact size, rugged construction, easyto install economic cost, and costsavings for customersThe cylinders,testing machines and other industryhas achieved large-scale applications, reliability Resolution:0.1mm/pulseRope :wire rope 0.6mm dia,rope maximum load: 16KGmeasure range: 1000mmer output: 8-24v DC NPN/PNP output or 5v DC TTL output can be selectedconnections: Red: VCC; Black: 0V; White:A; Green:Bcable length: 1 meter Installation Notes * Make sure the wiring in the power off state *Note that the error wiring may damage the sensor * Do not power lines or power cord with in the same conduit run lines, the signal with a special shielded cable to avoid interference * Make sure the power supply voltage changes within the rated range *Do not use when power is turned on after a short period of time (50ms) *If the product near devices that produce electromagnetic interference (switching regulator, high frequency, the conversion engine, etc.), please do the equipment rack ground terminal to secure the ground at the same time do a good job of shielding the work of the sensor signal transmission. *The sensors are precision instruments ,do not strike, to ensure that equipment and wire rope clean and prolong life; * To protect the rope from the external injury. * installation make rope is pulled out, can not let the rope friction and outlet * If used in a bad environment or for special occasions, please install protection agency orCustomized products contact me * If you are using non-linear motion of the body, self-designed steering mechanism or to buy the company displacement sensor attachment *Keep the rope perpendicular out of the outlet as far as possible, maintain a minimum angle (≤ 3degree) in order to ensure the accuracy of measurement and the tightrope of life;
