Digital Data 3800 Media Converter 10/100/1000Base-T to 100/1000FX Ethernet Converter - Reliable Network Connectivity for Office, Data Center & Industrial Applications

Product Description

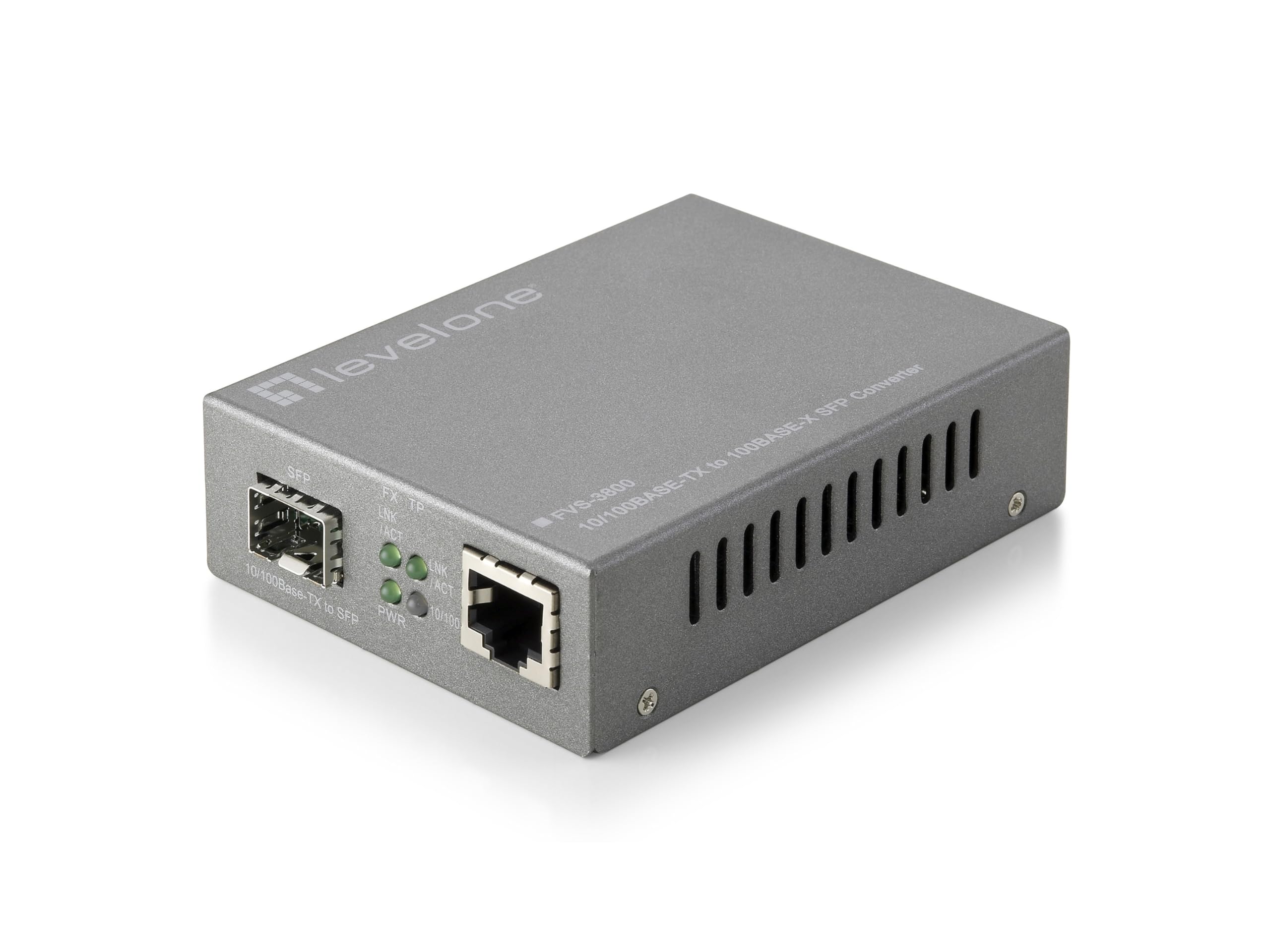

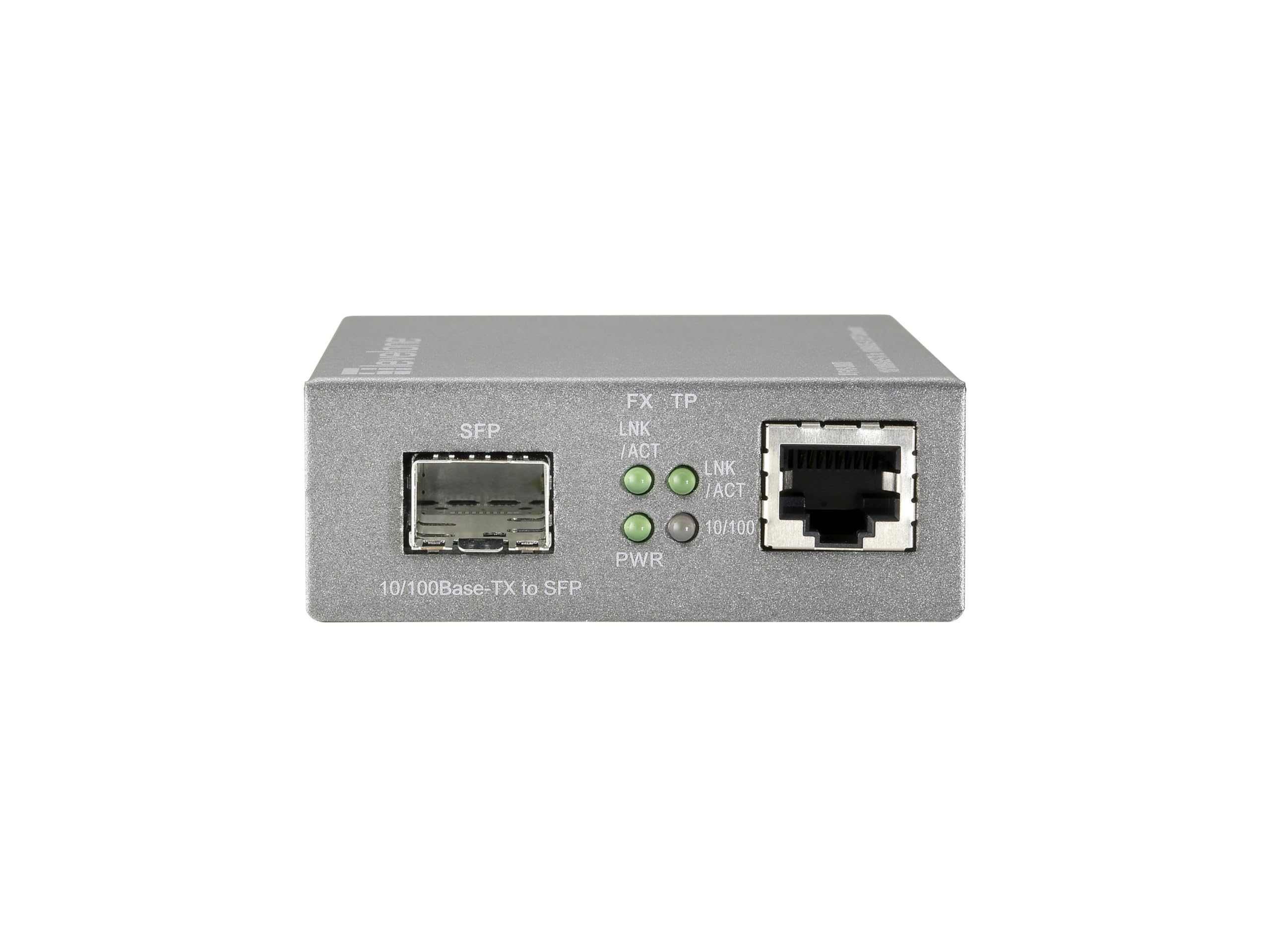

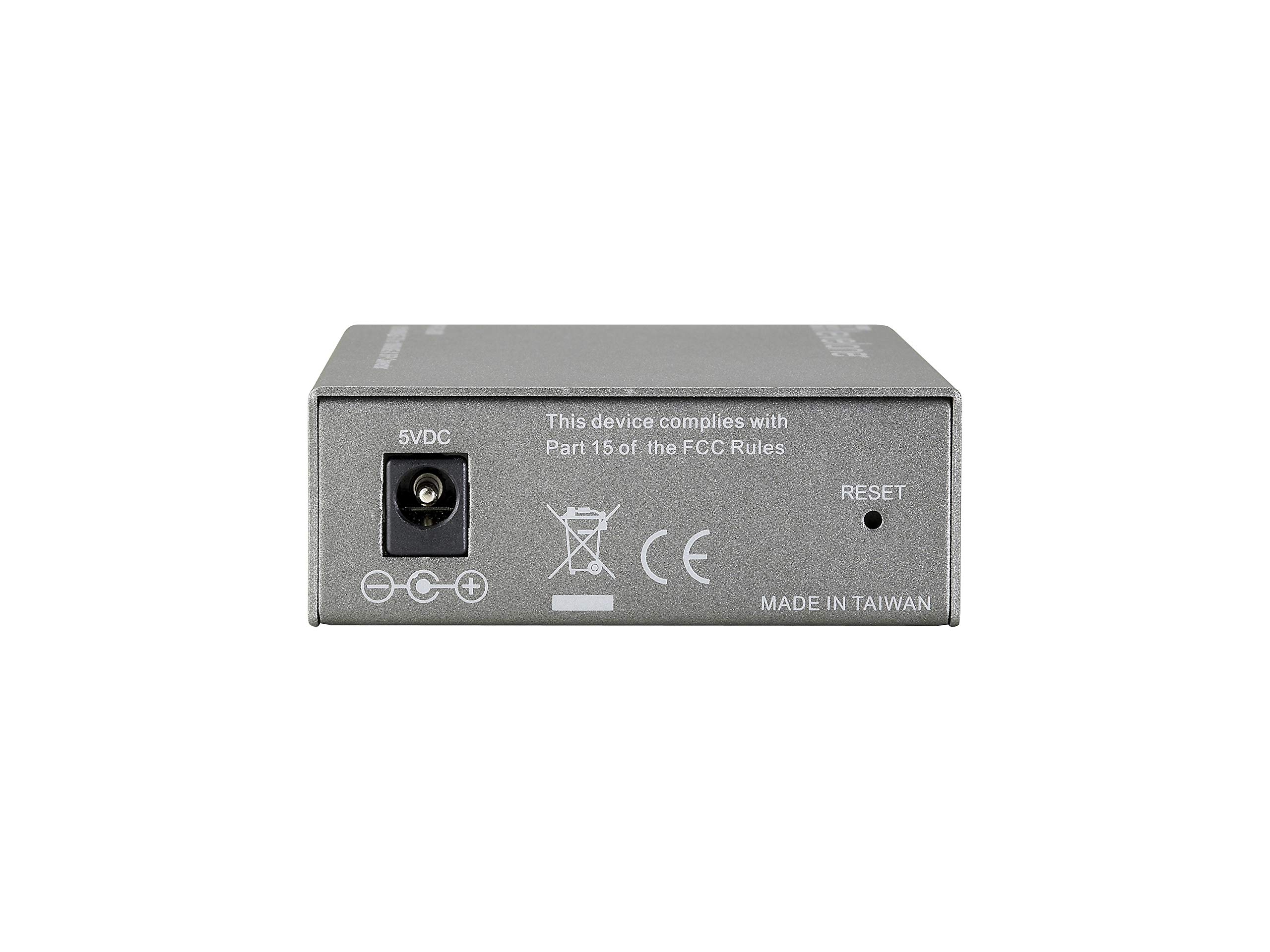

The LevelOne Web Smart Media Converter FVS-3800 is designed to make conversion between 10/100BASE-TX and 100BASE-X SFP Ethernet. With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications. - HTTP Management with remote firmware upgrade supported - ICMP and ARP protocols supported - DHCP Client for easy IP address setup - LLR (Link Loss Return) supported - IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported - Support 802.3x Flow Control to prevent lost data by controlling the device flow loading Ports & interfaces -Fiber optic connector: SFP -Connectivity technology: Wired -Ethernet LAN (RJ-45) ports: 1 -Fiber ports quantity: 1 -DC-in jack: Y Weight & dimensions -Width: 70.3 mm -Depth: 26.2 mm -Height: 94 mm Power -Input voltage: 5 -Input current: 1 -Power consumption (typical): 1.5 W -External power adapter: Y Operational conditions -Operating temperature (T-T): 0 - 50 °C -Operating relative humidity (H-H): 5 - 90% Networking -Data transfer rate (max): 100 Mbit/s -Converter input interface: 10Base-T,100Base-TX -Networking standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x -Ethernet interface type: Fast Ethernet -Ethernet LAN data rates: 10,100 Mbit/s -Jumbo frames support: Y -Flow control support: Y Packaging content -Manual: Y Design -Internal: N -LED indicators: Y -Colour of product: Grey -Country of origin: Taiwan -Certification: FCC Part 15 Class A, CE
